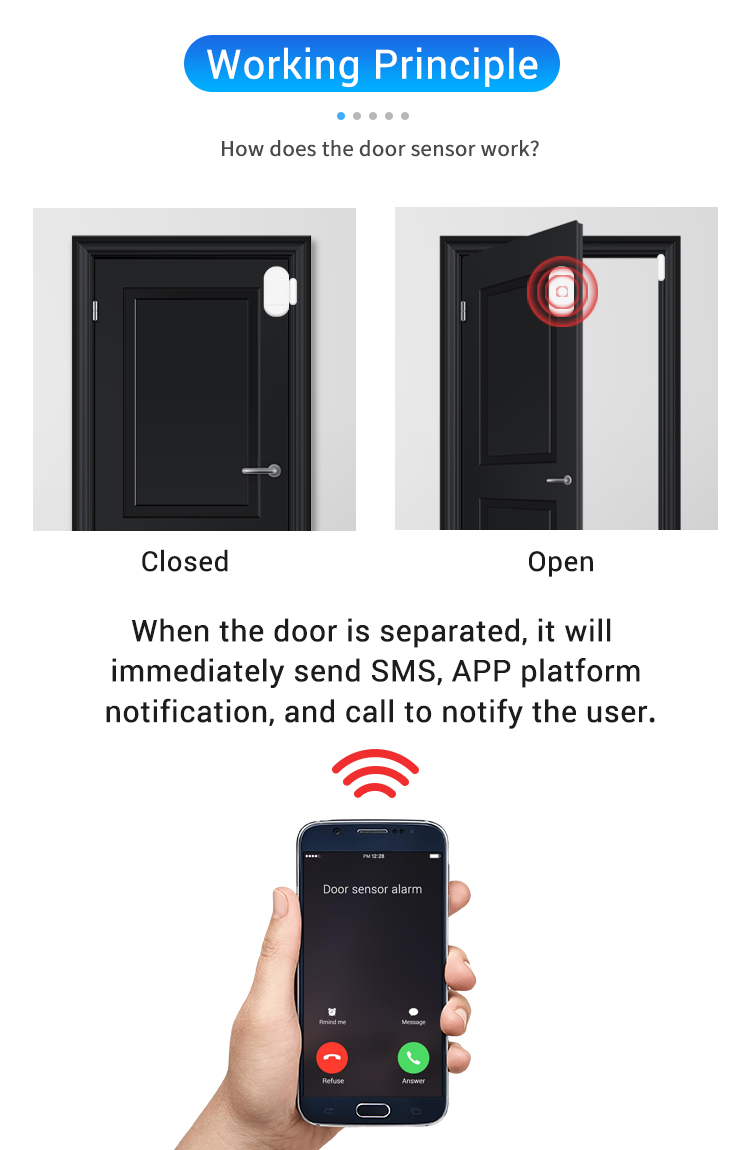

A wireless door sensor developed by our company. It has real-time detection of opening/closing of doors and windows. The appearance design is novel, the lines are smooth, it matches well with the home decoration, and can be integrated with the installation environment. There is a code matching setting between the door sensor and the host, and the unique address code is learned into the host during the code matching; this detector is a separate trigger type, when the position of the magnet and the transmitter moves more than 1cm, the transmitter The device immediately sends an alarm signal to the alarm host to prevent intruders who attempt to sneak in from doors and windows.

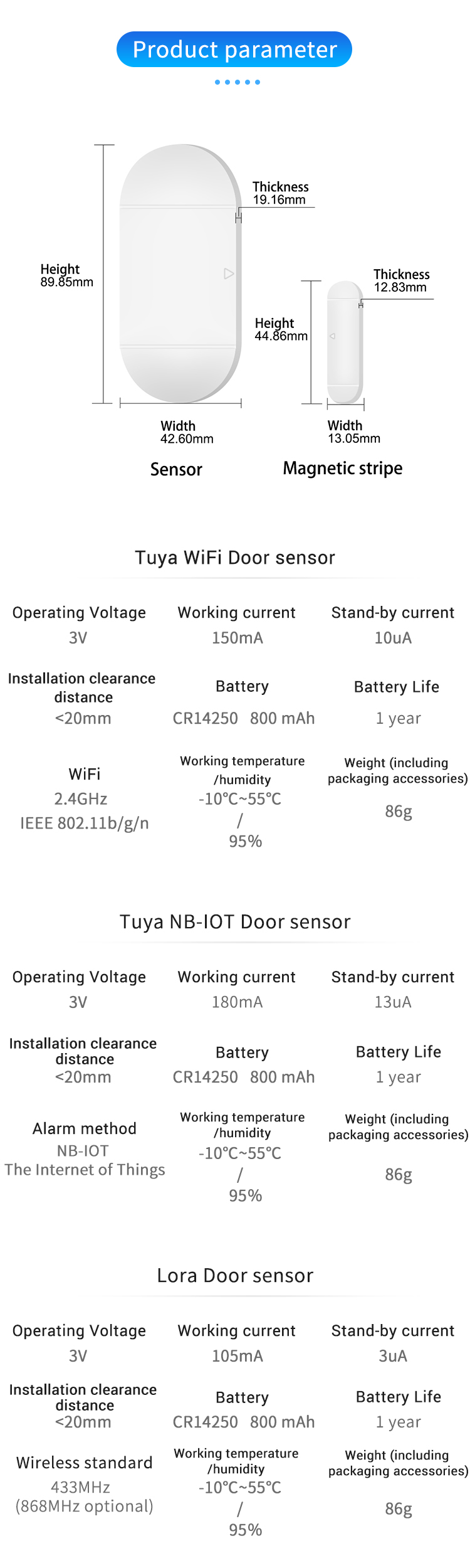

Tuya WiFi Door magnetic technical parameters
Specification | Parameter |
Operating Voltage | 3V |
Working current | 150mA |
Stand-by current | 10uA |
Installation clearance
distance | <20mm |
Battery | CR14250 800 mAh |
Battery Life | 1 year（Trigger 20 times a day） |
WiFi | 2.4GHz IEEE 802.11b / g / n |
Working temperature/humidity | -10℃- 55℃ / 95％ |
Weight (including
accessories) | 86g |
Product Size | Sensor：89.85 X 42.60 X 19.16 mm Magnetic stripe：44.86 X 13.05 X 12.83 mm |
Tuya NB-IOT Door magnetic technical parameters
Specification | Parameter |
Operating Voltage | 3V |
Working current | 180mA |
Stand-by current | 13uA |
Installation clearance
distance | <20mm |
Battery | CR14250 800 mAh |
Battery Life | 1 year（Trigger 20 times a day） |
Alarm method | NB-IOT物聯(lián)網(wǎng)傳輸 |
Communication frequency band | Band5 Band8 |
Transfer Protocol | COAP , LWM2M |
Working temperature/humidity | -10℃- 55℃ / 95％ |
Weight (including
accessories) | 86g |
Product Size | Sensor：89.85 X 42.60 X 19.16 mm Magnetic stripe：44.86 X 13.05 X 12.83 mm |
Lora Door magnetic technical parameters
Specification | Parameter |
Operating Voltage | 3V |
Working current | 105mA |
Stand-by current | 3uA |
Installation clearance
distance | <20mm |
Battery | CR14250 800 mAh |
Battery Life | 1 year（Trigger 20 times a day） |
Wireless standard | 433MHz (Optional 868MHz) |
Wireless communication
distance | ≥1000m |
Band Width | BW62.50KHZ (0x60) |
Spreading Factor | SF09 (0x90) |
CodingRate | CR_ 4_ 6（0x04） |
Power Cfig | 191 db (15) |
Working temperature/humidity | -10℃- 55℃ / 95％ |
Weight (including
accessories) | 86g |
Product Size | Sensor：89.85 X 42.60 X 19.16 mm Magnetic stripe：44.86 X 13.05 X 12.83 mm |
