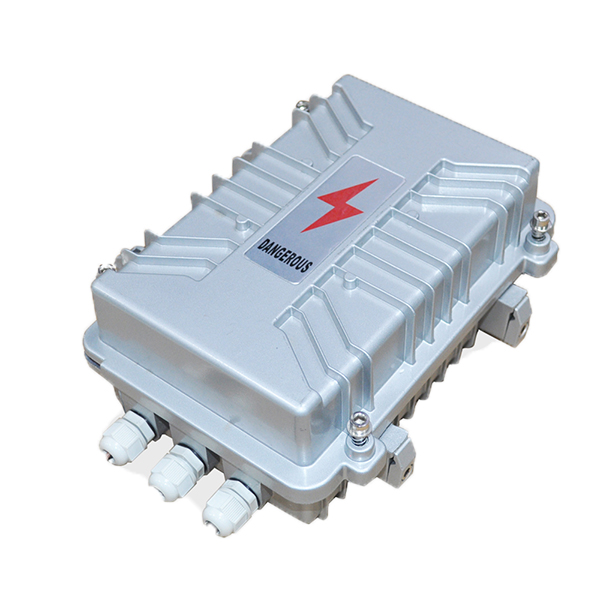

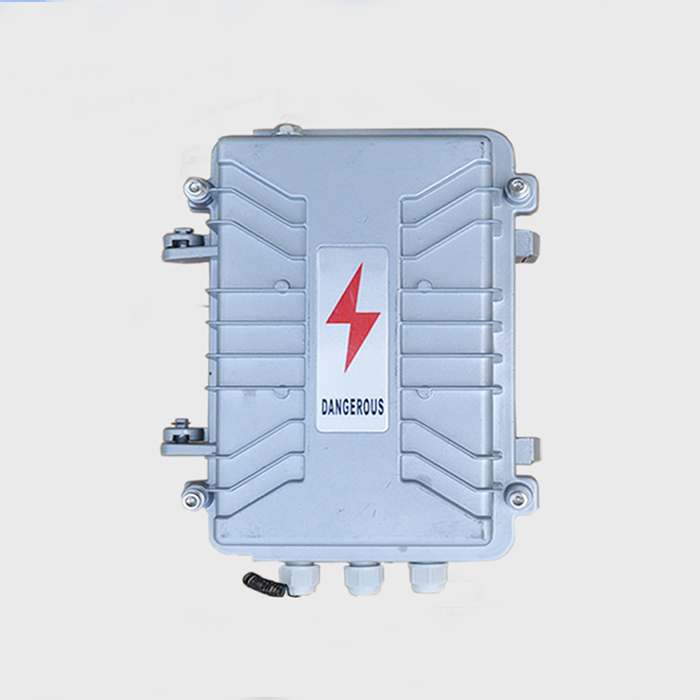

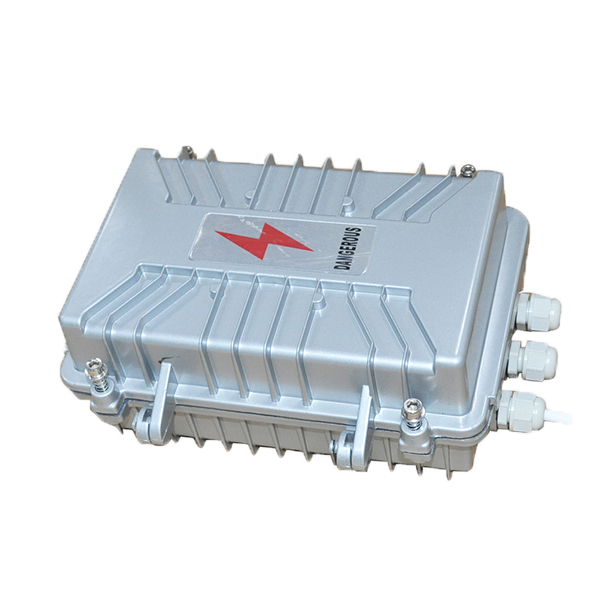

Solution of Power Transformer Burglar Alarm
◎Can connect external industrial camera, this system with own SMS, MMS, Email functions
◎8 wired zones, open/closed alarm mode is optional by self-programming
◎Fixed code: 40 wireless zones,315/433MHz(optional)
◎Digital inputs are adopted optical-coupled isolators, which can prevent external high voltage from destroying internal components.
◎Send SMS automatically to report the state of digital input when it returns normal status.
◎Wireless keyboard for setting phone No.
◎Arm/disarm remotely through GSM SMS。
◎Modify zone content (Chinese 70 words, English 140 letters )
◎Send SMS to 5 preset mobile phone numbers while alarming
◎Auto-dial 5 preset phone numbers while alarming and monitor the sound at site.
◎Record function: Maximum recording time:1 min
◎Voice function: support play the user record voice
◎With wired Mic interface and siren interface
◎Inquiry host’s status and alarm events through SMS
◎Inquiry zones’ name and arm/disarm status through SMS
◎Digital inputs are adopted cal-coupled isolators, which can prevent external high voltage from destroying internal.
◎GSM network wireless communication for alarm, no PSTN cable, not fear cable cut
◎Temper device: Arming while the control panel removing or shaking.
◎Connect with alarm center through GSM network
◎With ROHS/CE/FCC certifications, conform to 3C safety standard and GB12663-2001 government standard
Main technical parameters
☆ GSM frequency band： 850/900/1800/1900MHZ（quad band）
☆ Fixed code wireless signal frequency:315MHz/433MHz
Wireless distance: 100-200m
☆ Response time≤8s（GSM network normal）
☆ Fixed code zones：40
☆ Working conditions:
Operating temperature:-45～+60℃ Humidity ≤95% no condensation
☆ Standby current :5mA
☆ Alarm current: <500mA
☆ Standby power consumption:< 0.3W
☆ Alarm consumption:< 1-2W
☆ Adapter voltage:AC100- 240V 50Hz/60Hz。
Output voltage: DC12V / 2A
Standby battery：DC7.4V/1200mA
Standby battery working hours≥48 hours
☆ Size:260mm（Length）×180mm（Width）×120mm（High）
Gross weight:3.5Kg Net weight: 2.5Kg
◆Remote controller
Power supply:DC12V（Build-in 12V dry battery）
Quiescent current: 0
Emission current≤15mA
Transmitting frequency:315/433MHz±0.5MHz
Transmission distance: no obstacle distance: 80m
Working conditions:
Operating temperature:-10～+55℃ Humidity ≤90%
